LED BDM Frame with 4 Probes Mesh Pens Full Kit TriCore BDM frame With LED User Manual

LED BDM Frame with 4 Probes Mesh Pens Full Kit is the replacement of old bdm frame. TriCore BDM frame With LED works with KESS, KTAG, FGTECH, BDM100, KTM100, CMD, DIMSPORT AIDS, and othe ECU chip tuning tools. Do you know How to use LED BDM Frame with 4 Probes Mesh Pens Full Kit? Below OBD2Tuner.com LED BDM Frame with 4 Probes Mesh Pens Full Kit TriCore BDM frame With LED
User Manual.

LED BDM Frame with 4 Probes Mesh Full Kit TriCore BDM frame for Kess Ktag Fgtech BDM100 ecu programmer



OBD2Tuner.com LED BDM Frame with 4 Probes Mesh Pens Full Kit TriCore BDM frame With LED User Manual:

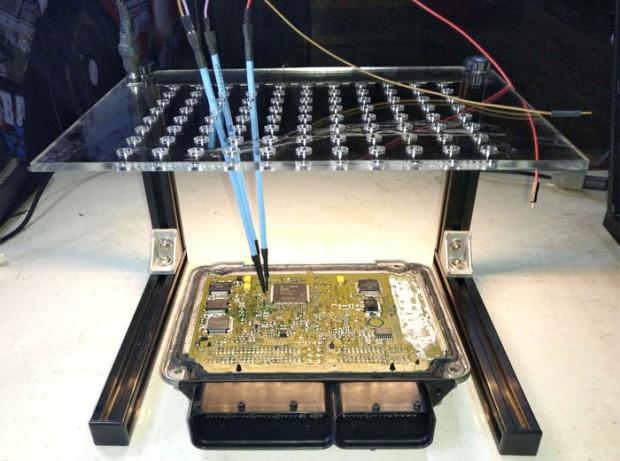

Insert the probe to connect the BOOT on the ECU board and CNF1, the legend for the public MED17.5.2 computer board.

Applicable to open the ECU, to avoid welding jumper. In the acrylic board with LED light bar, help the case of poor light to see the hole of the board.



Jumper for the plug-in, to reduce the trouble of welding the connection,

easy to connect, and can be more than a series.



LED power situation, the whole board can see clearly. LED power supply with ECU equipment with 12V power supply, connect the probe, you can disconnect the power supply, to the equipment for the



The new LED light bar interface is fixed on the acrylic plate, for the straight type.


Add a LED light to facilitate the case of poor light to see the computer board, the picture on the LED lights may be updated at any time, only for more practical.



The tip of the probe is specially designed and scalable.



Here, this is how to get BDM frame to  work with ECU programmers Ktag 7.020:
